TI-89 Link Protocol Guide - Screenshots


Screenshots

The TI-89's screenshot ability is "silent," which means that the calculator does not need to be put in a special mode. Screenshots can be taken any time the calculator is ready to accept a keypress.

The protocol used for getting a screenshot is shown below. For information on packet formats, click here.
Step Direction Packet
Computer
===>
Calculator
SCR
<===
ACK
<===
DATA - Format described below.
===>
ACK

The data packet contains a 3840-byte monochrome bitmap (1 bit per pixel). Each bit has a value of 1 if the corresponding pixel is dark or a value of 0 if the corresponding pixel is light.

The pixel order is left-to-right, then top-to-bottom (See figure below).
Byte 0 defines the first 8 pixels in the left side of the top row of the screen. Bytes 1-29 define the rest of the first row, bytes 30-59 define the second row, etc.

Example:
PC: 08 6D 00 00 Screenshot request
TI: 98 56 00 00 Acknowledgement of request
  98 15 00 0F <3840 bytes plus 2 byte checksum> Screen data
PC: 08 56 00 00 Acknowledgement of data

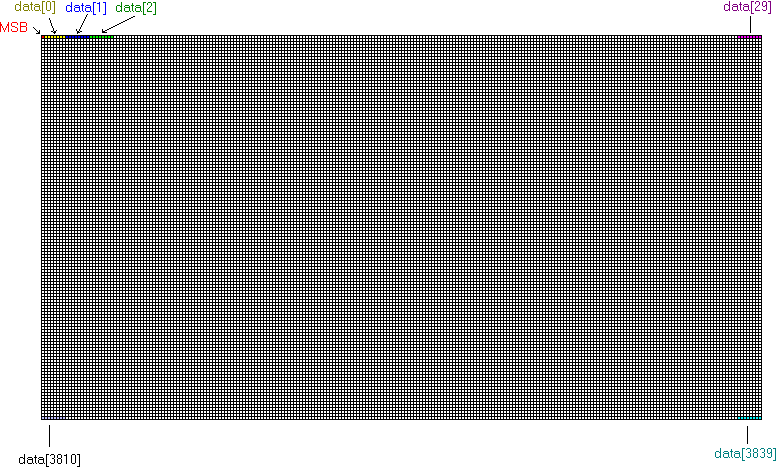

The following figure demonstrates byte ordering of the pixels if the bitmap is in a 3840-element array data[]:

[pixel grid diagram]

Remark: contrary to the TI92/92+ calculator, only the 160x100 upper rectangle is visible on the TI89. The remaining bytes are usable (in assembler for instance) but they are not visible. So, a clipping is necessary once the screenshot have been got.

Note that this format is different from the standard Windows bitmap format, which specifies a value of 1 if the pixel is light and bottom-to-top row order.
